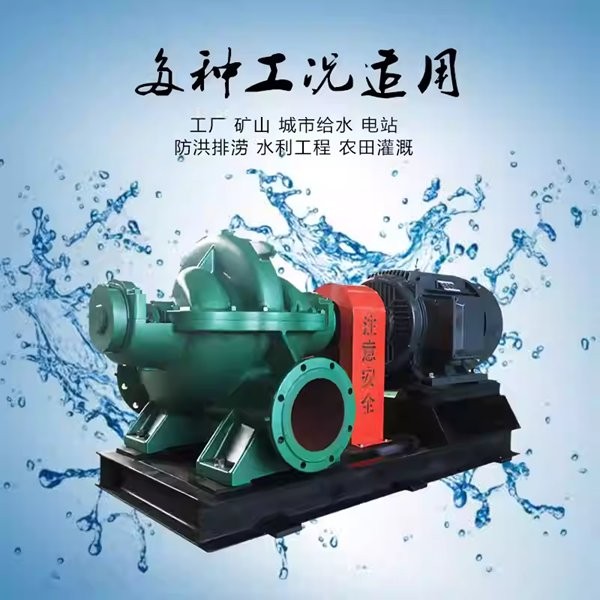

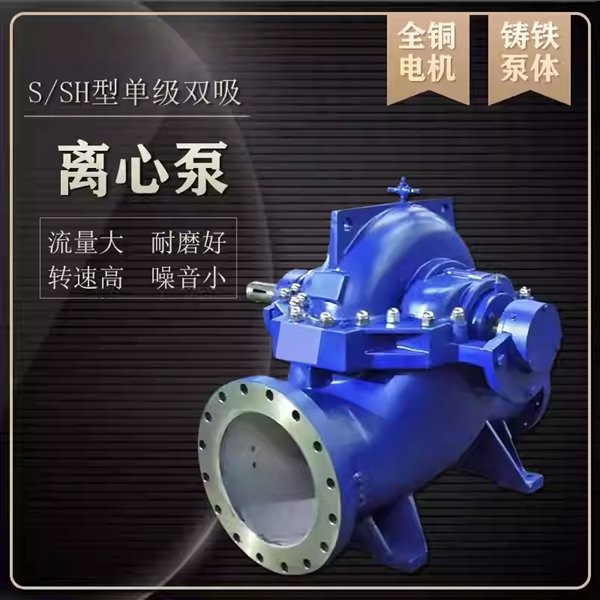

The SH type single-stage double-suction casing split-case centrifugal pump is used for pumping clean water or other liquids with physical and chemical properties similar to water. The medium temperature is 80℃. If cooling water is passed through the bearings at both ends, the medium temperature can reach 130℃. By changing the materials of the impeller, sealing ring and shaft sleeve, turbid water containing mud and sand can be conveyed. The shaft seal of the pump generally adopts soft packing. If there are special ordering requirements, mechanical seals can also be installed.

The meaning of the pump model is as follows: 10Sh-13A

10- The suction diameter is divided by 25 (that is, the suction diameter of this pump is 250mm)

Sh Single-stage double-suction centrifugal pump

13 - The specific speed is divided by 10 (i.e., the specific speed of this pump is 130). A - the first turning of the impeller housing

For example: 300S58A(B

The diameter of the water inlet is 300 mm

S-single-stage double-suction centrifugal pump

58- Head m

For example: 16SA - 9JA

16 - Inlet diameter (mm)

SA- Single-stage Double-suction Centrifugal Pump

9 - The number of revolutions is divided by 10 and rounded to the nearest whole number

The speed of the pump decreases rapidly

When viewed from the prime mover direction, the pump rotates counterclockwise (if there are special requirements, it can also be changed to rotate clockwise).
