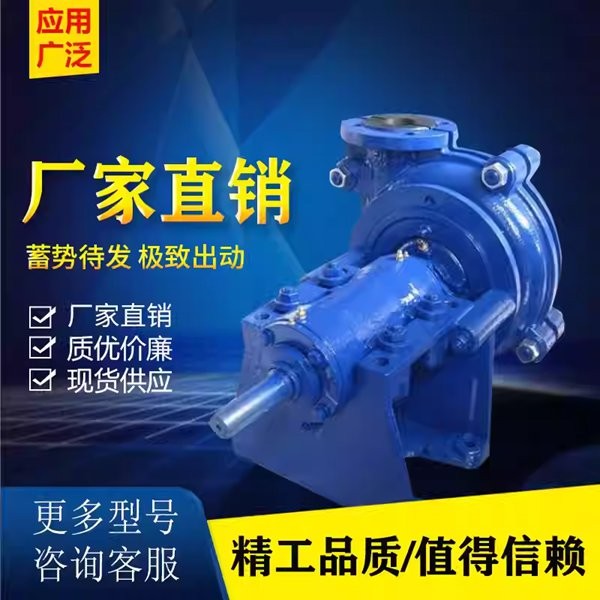

The M, AH and HH type slurry pumps are single-stage single-suction cantilever horizontal centrifugal pumps, which are energy-saving replacement products to replace the PN, PH, PS and other models. It is suitable for conveying liquids containing suspended solid particles in industrial sectors such as metallurgy, mining, coal, power, and building materials, such as concentrates, tailings, ash, coal slag, cement, soil, sand and gravel, and other hard, highly corrosive and high-concentration slurries. The temperature of the solid-liquid mixture being conveyed must not exceed 80℃. The concentration of the slurry can reach 60%.

Selection instructions

The entrances of M, AH and HH types are axial. Users can adjust the direction of the exit in the circumferential direction as needed, with the minimum adjustment Angle being 45°.

2. The M, AH and HH type pumps rotate counterclockwise when viewed from the suction port. There are four commonly used transmission methods: DC type, CV type, ZV type and CR type.

3. Among them, there are two types of "CR" transmission: one has a slide way but no base, and the other has a slide way but a base.

4. The shaft seal adopts soft packing seal or auxiliary impeller seal.

Performance range

Outlet diameter: 40-350mm, flow rate: 7.56-169m³/h

Head: 6-97 meters, rotational speed: 300-3800r/min

Power range: 2.2kw-480kw
